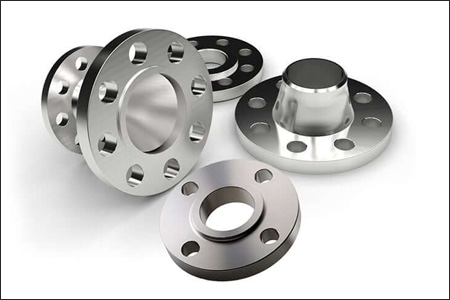

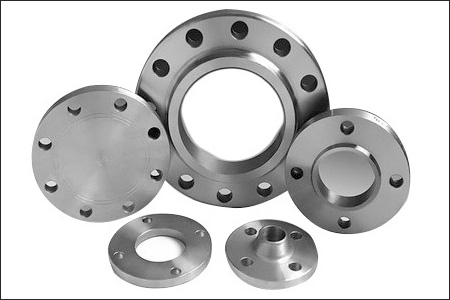

We have world class ultra modern manucaturing facilities for forgings and flanges. Our range of Industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. We manufacturer s flanges according to various Specifications. The complete specifications and size range are given below.
| Specification (Latest edition) | Item Type | Pressure Class | Size Range |
|---|---|---|---|
| ASME/ANSI B16.5 | Blind, Weld Neck, Slip-on, Socket Weld, Threaded and Lap Joint Flanges | 150 to 2500LBS 150 to 1500LBS |
26“ to 60" 26“ to 48" |
| ASME/ANSI B16.47 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 75 to 300LBS 400, 600LBS 900LBS |
1/2“ to 12" 26“ to 60" 26“ to 48" |
| ASME/ANSI B16.36 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 300 To 2500LBS | 1" to 12" |
| EN 1092-1 / DIN / BS 4504 Flanges | 01 (Plate flange), 02 (Loose plate flange for Types 32—37), 04 (Loose plate flange for Type 34),05 (Blind flange), 11 (Weld-neck flange), 12 (Hubbed slip-on flange), 13 (Hubbed | PN2.5 to PN16 PN25 PN40 PN63 PN100 PN160, PN250 PN320 PN400 |
10mm to 1800mm 10mm to 1000mm 10mm to 600mm 10mm to 400mm 10mm to 350mm 10mm to 300mm 10mm to 250mm 10mm to 200mm |
| BS 10 | Blind, Slip-on and Welding neck flanges | TABLE-A, D, E, F, H, J, K, R, S, T | 15mm to 600mm |
| ASME/ANSI B16.9/MSS SP-43 | Stub end -Type:A, B, C (Short pattern) | S10, S40, S80 | ½” to 24” |
